LiftMaster 98022

Improved DC Battery Backup Wall Mount Wi-Fi Garage Door Opener, Space-Saving, no Cable Tension Monitor, Heavy Lifting, LED Lighting System

LiftMaster Expert Installation

LiftMaster 98022

Improved DC Battery Backup Wall Mount Wi-Fi Garage Door Opener, Space-Saving, no Cable Tension Monitor, Heavy Lifting, LED Lighting System

Overview

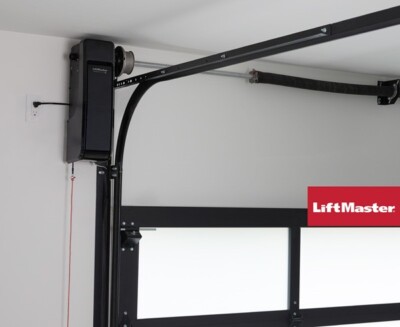

The LiftMaster 98022 is an advanced wall-mount garage door opener featuring a space-saving design, ultra-quiet DC motor, integrated battery backup for power outages, built-in Wi-Fi and Bluetooth for easy connectivity, and myQ app integration for remote control and monitoring. It supports heavy doors up to 850 lbs and includes smart safety features like automatic door locking and motion detection.

Premium Features

Smart Space-saving wall-mount design opens up ceiling space; Built-in Wi-Fi and Bluetooth for easy connection; myQ Remote LED Light for maintenance-free illumination; myQ Mobile App for alerts and remote control
Quiet Operation Wall-mount design with powerful ultra-quiet DC motor eliminates noise and vibrations through the ceiling
Reliable Integrated battery backup for access during power outages; Lifetime motor warranty, 5-year parts, 1-year battery and accessories
Safe and Secure Timer-to-Close (1, 5, 10 min or custom); Security+ 2.0 sends new code with every click; Motion detector turns on lights; Protector System auto-reverses on obstruction

Technical Specifications

MechanismSteel chassis and plastic cover, internal chain and sprocket drive (63:1 gear reduction), auto-force adjustment, DC Wi-Fi logic with built-in Bluetooth and surge suppressor, up to 850 lbs lift capacity
Speed8.5 inches per second upward, 7.6 inches per second downward
LightingmyQ Remote LED Light - 1,500 lumens
WarrantiesMotor: Lifetime / Parts: 5 Years

In The Box

  • Garage Door Opener Head (98022)
  • Smart Control Panel (880LMW)
  • 3-Button Remote Control (893MAX)
  • Automatic Garage Door Lock (841LM)
  • myQ Remote LED Light (827LM)
  • Garage Door Opener Battery (485LM)
